LUNA2000-7-S1 |
LUNA2000-14-S1 |
LUNA2000-21-S1 |
| Stroommodule |
LUNA2000-10KW-C1 |
LUNA2000-10KW-C1 |
LUNA2000-10KW-C1 |
| Aantal stroommodules |
1 |
1 |
1 |
| Batterijmodule Energie |

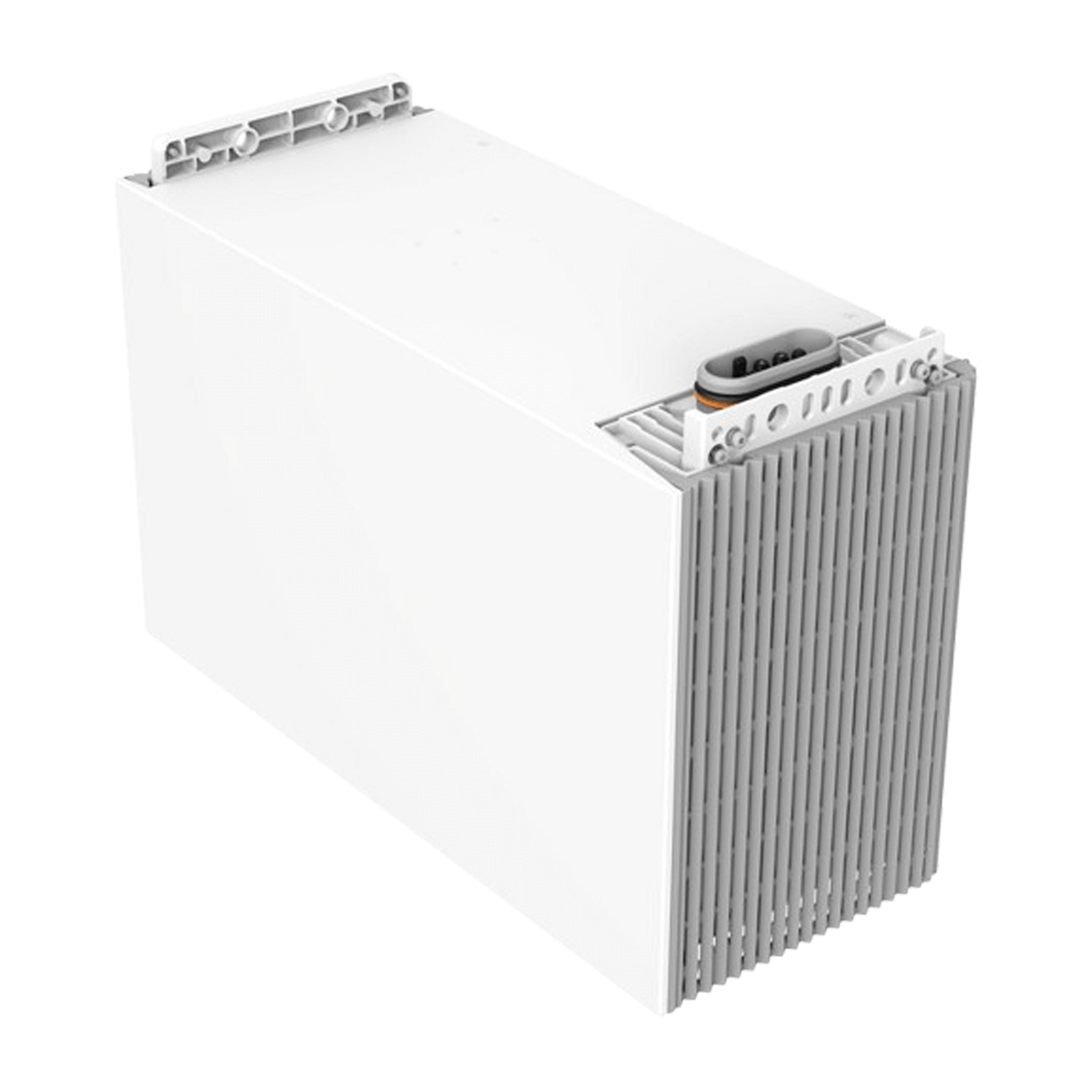

LUNA2000-7-E1 |
LUNA2000-7-E1 |
LUNA2000-7-E1 |
| Batterijcapaciteit |
6,9 kWh |
6,9 kWh |
6,9 kWh |
| Aantal batterijmodules |
1 |
2 |
3 |
| Beschikbare energie uit de batterij |
6,9 kWh |
13,8 kWh |
20,7 kWh |
| Max. laad- en ontlaadvermogen |
3,5 kW |
7 kW |
10,5 kW |
| Werkspanningsbereik (1-fase systeem) |
350 – 560 V |
350 – 560 V |
350 – 560 V |
| Werkspanningsbereik (3-fase systeem) |
600 – 980 V |
600 – 980 V |
600 – 980 V |
| Display |
Laadstatusindicator (SOC), LED-indicator |
Laadstatusindicator (SOC), LED-indicator |
Laadstatusindicator (SOC), LED-indicator |
| Communicatie |
RS485/FE/CAN |
RS485/FE/CAN |
RS485/FE/CAN |
| Afmetingen (b x d x h) |
590 mm x 255 mm x 510 mm |
590 mm x 255 mm x 870 mm |
590 mm x 255 mm x 1230 mm |
| Gewicht (inclusief vloerstandaard) |
80 kg |
148 kg |
216 kg |
| Afmetingen van het stroommodule (b x d x h) |
590 mm x 255 mm x 150 mm |
590 mm x 255 mm x 150 mm |
590 mm x 255 mm x 150 mm |
| Gewicht van het stroommodule |
10 kg |
10 kg |
10 kg |
| Afmetingen van de batterijmodule (b x d x h) |
590 mm x 255 mm x 360 mm |
590 mm x 255 mm x 360 mm |
590 mm x 255 mm x 360 mm |
| Gewicht van de batterijmodule |
68 kg |
68 kg |
68 kg |
| Installatie |
Vloerstandaard (standaard), wandmontage (optioneel) |
Vloerstandaard (standaard), wandmontage (optioneel) |
Vloerstandaard (standaard), wandmontage (optioneel) |
| Bedrijfstemperatuur |
-20°C tot +55°C (-4°F tot +131°F) |
-20°C tot +55°C (-4°F tot +131°F) |
-20°C tot +55°C (-4°F tot +131°F) |
| Max. hoogte boven zeeniveau |
4000 m (13 123 ft) (verlaging van nominale parameters boven 2000 m) |
4000 m (13 123 ft) (verlaging van nominale parameters boven 2000 m) |
4000 m (13 123 ft) (verlaging van nominale parameters boven 2000 m) |
| Installatieomgeving |
Buiten/BAndern |
Buiten/BAndern |
Buiten/BAndern |
| Relatieve vochtigheid |
5% – 95% |
5% – 95% |
5% – 95% |
| Koeling |
Natuurlijke convectie |
Natuurlijke convectie |
Natuurlijke convectie |
| Beschermingsgraad |
IP 66 |
IP 66 |
IP 66 |
| Geluidsniveau |
< 29 dB |
< 29 dB |
< 29 dB |
| Batterijtechnologie |
Lithium-ijzer-fosfaat (LiFePO4) |
Lithium-ijzer-fosfaat (LiFePO4) |
Lithium-ijzer-fosfaat (LiFePO4) |
| Schaalbaarheid |
Max. 4 systemen die parallel kunnen werken |
Max. 4 systemen die parallel kunnen werken |
Max. 4 systemen die parallel kunnen werken |
| Compatibele omvormers |
SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 |
SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 |
SUN2000-12/15/17/20/25K-MB0, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-8/10K-LC0, SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 |
| Certificaten |
CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS |
CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS |
CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3, ISO13849, REACH, RoHS |
| Bestelmogelijkheden |
LUNA2000-7-E1, LUNA2000-10KW-C1, wandmontageset voor LUNA2000-7/14/21-S1 |
LUNA2000-7-E1, LUNA2000-10KW-C1, wandmontageset voor LUNA2000-7/14/21-S1 |
LUNA2000-7-E1, LUNA2000-10KW-C1, wandmontageset voor LUNA2000-7/14/21-S1 |
